1. AMQP 核心组件

1. RabbitAdmin
2. SpringAMQP声明
3. RabbitTemplate
4. SimpleMessageListenerContainer
5. MessageListenerAdapter
6. MessageConverter

2. RabbitAdmin

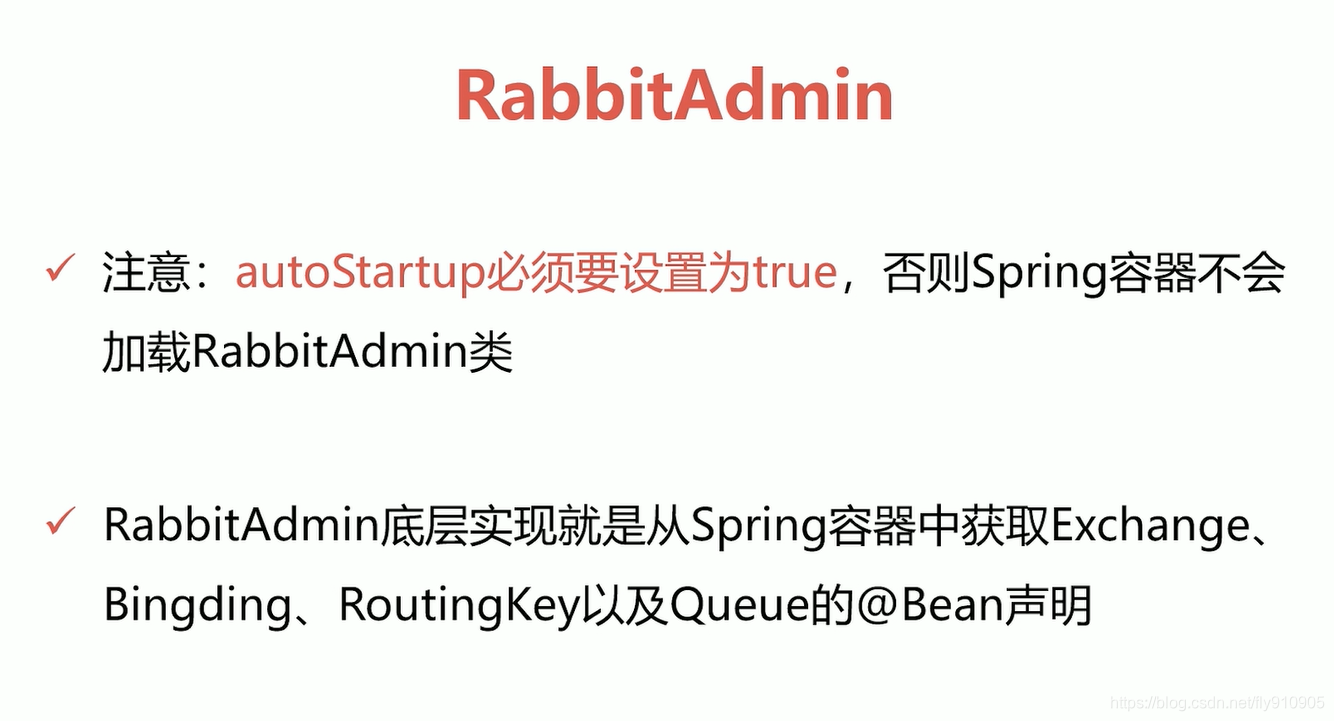

注意：

1. autoStartUp必须要设置为true,否则Spring容器不会加载RabbitAdmin类
2. RabbitAdmin底层实现就是从Spring容器中获取Exchange、Bingding、RoutingKey以及Queue的@Bean声明

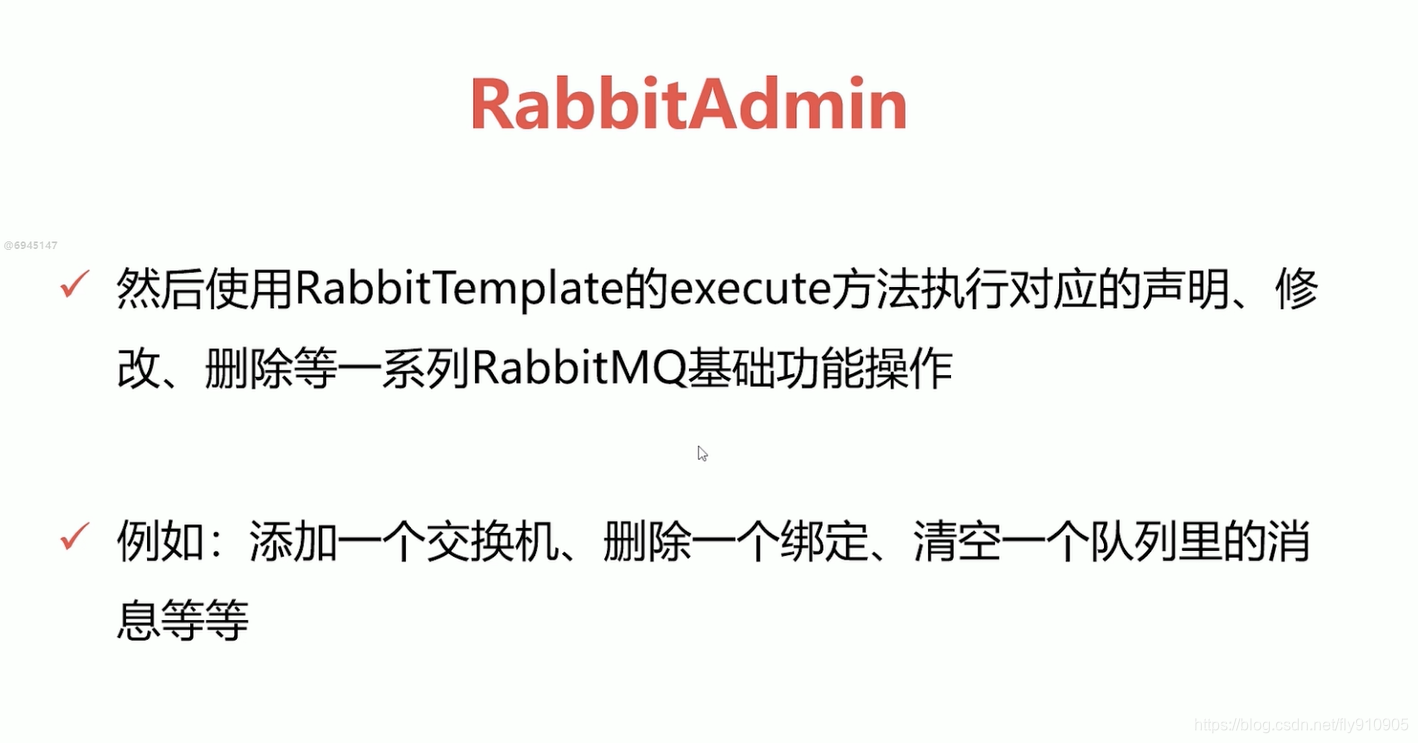

3. 使用RabbitTemplate的execute方法执行对应的什么、修改、删除等一系列RabbitMQ基础功能操作
4. 例如：添加一个交换机、删除一个绑定、清空一个队列里的消息等等

3. SpringAMQP声明和RabbitTemplate

SpringAMQP声明

• 以前，在Rabbit基础API里面声明一个Exchange、声明一个绑定、一个队列

ConnectionFactory connectionFactory = new ConnectionFactory();
connectionFactory.setHost("192.168.11.76");
connectionFactory.setPort(5672);
connectionFactory.setVirtualHost("/");


Connection connection = connectionFactory.newConnection();
Channel channel = connection.createChannel();

String exchangeName = "testackexchange";
String queueName = "testackqueue";
String routingKey = "ack.#";

channel.exchangeDeclare(exchangeName, "topic", true, false, null);
channel.queueDeclare(queueName, true, false, false, null);
channel.queueBind(queueName, exchangeName, routingKey);

// 手工签收 必须要关闭 autoAck = false
channel.basicConsume(queueName, false, new MyConsumer(channel));

• 使用SpringAMQP去声明，就需要使用SpringAMQP的如下模式，即声明@Bean方式

 /**

     * 针对消费者配置

     * 1. 设置交换机类型

     * 2. 将队列绑定到交换机

        FanoutExchange: 将消息分发到所有的绑定队列，无routingkey的概念

        HeadersExchange ：通过添加属性key-value匹配

        DirectExchange:按照routingkey分发到指定队列

        TopicExchange:多关键字匹配

     */

    @Bean

    public TopicExchange exchange001() {

        return new TopicExchange("topic001", true, false);

    }


@Bean
public Queue queue001() {
    return new Queue("queue001", true); //队列持久
}

@Bean
public Binding binding001() {
    return BindingBuilder.bind(queue001()).to(exchange001()).with("spring.*");
}  </code></pre>

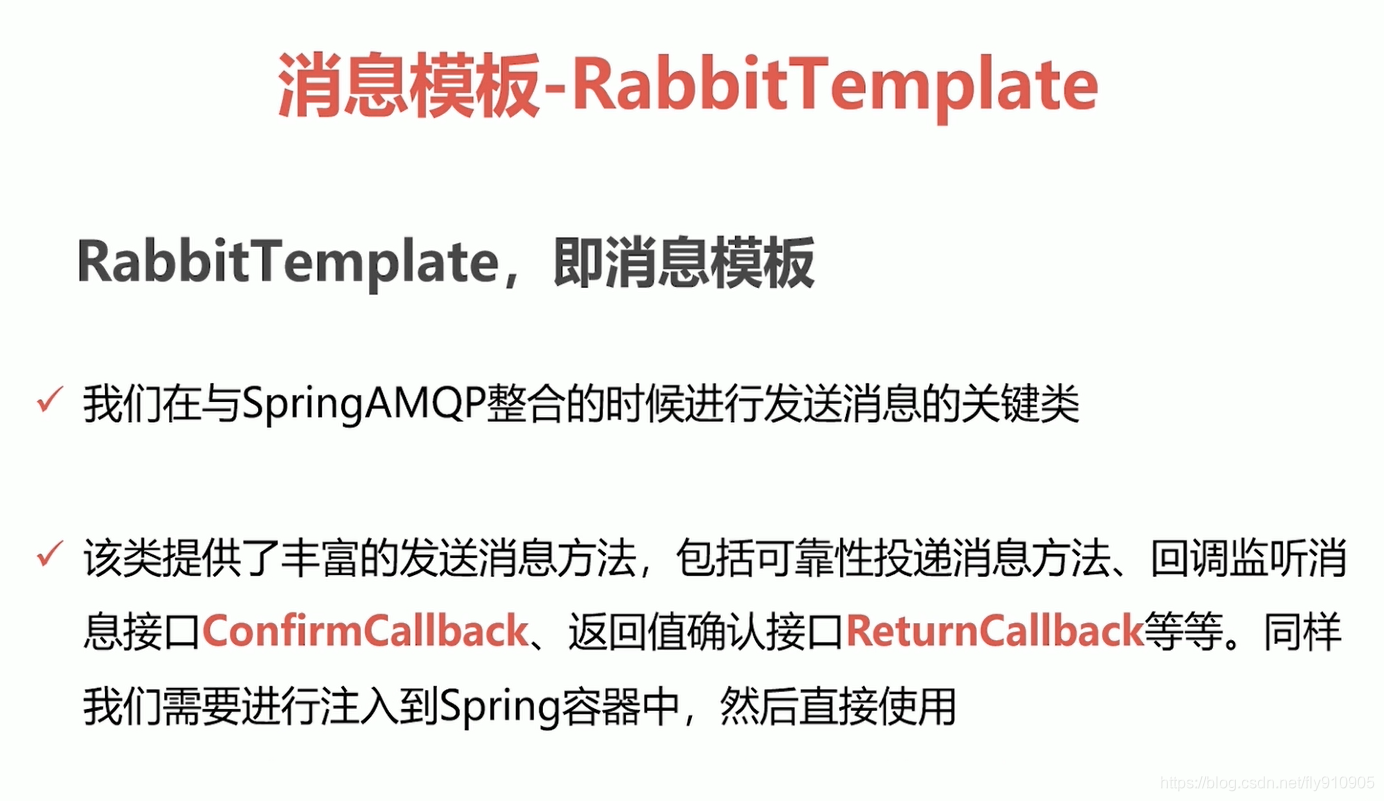

 RabbitTemplate








 RabbitTemplate，即消息模板




我们在与SpringAMQP整合的时候进行发送消息的关键词

该类提供了丰富的发送消息方法，包括可靠性投递消息方法、回调监听消息接口ConfirmCallback、返回值确认接口ReturnCallback等等。同样我们需要进行注入到Spring容器中，然后直接使用

在与Spring整合时需要实例化，但是在与SpringBoot整合时，在配置文件里添加配置即可

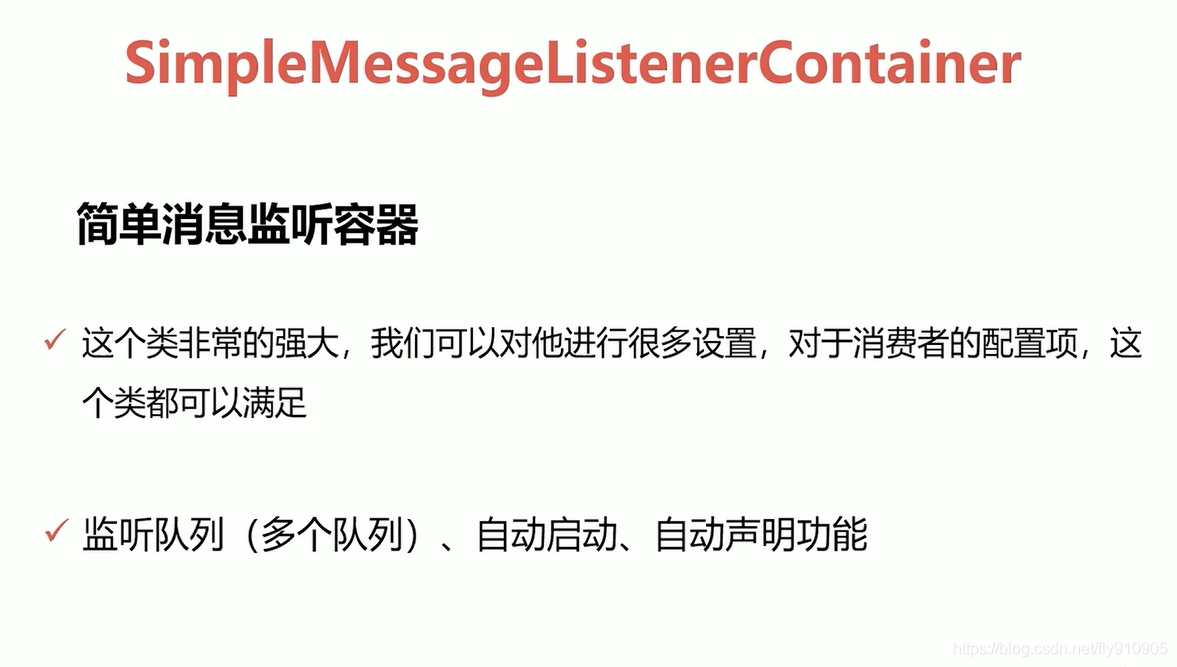

4. SimpleMessageListenerContainer























简单消息监听容器




这个类非常的强大，我们可以对它进行很多设置，对于消费者的配置项，这个类都可以满足

监听队列(多个队列)、自动启动、自动声明功能

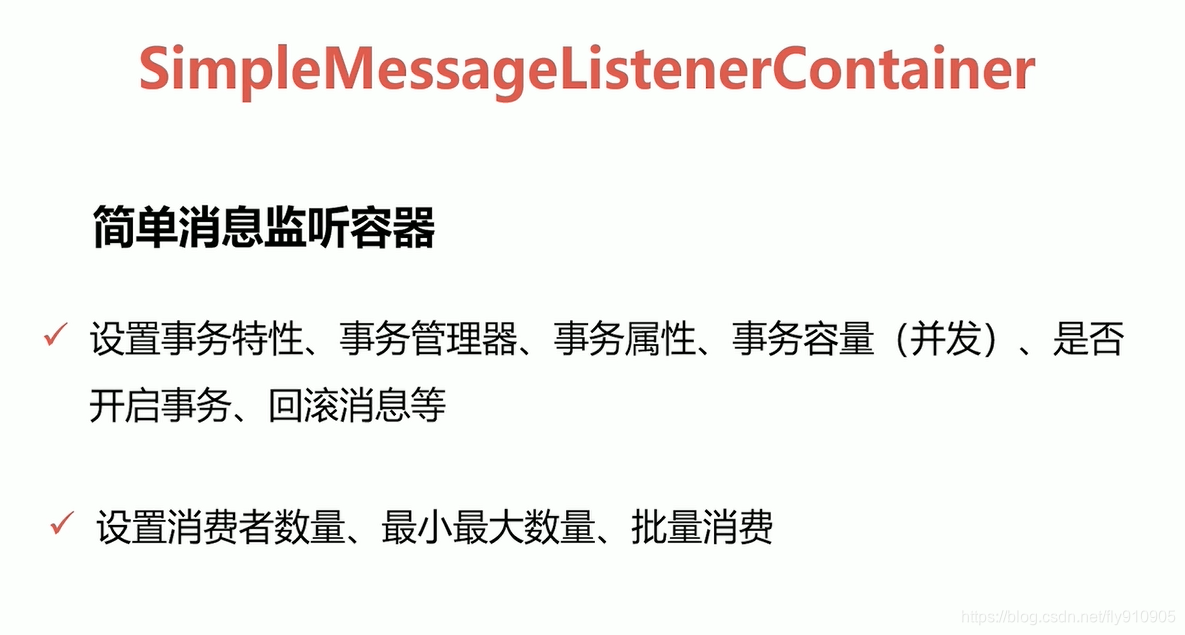

设置事务特性、事务管理器、事务属性、事务容器(并发)、是否开启事务、回滚消息等

设置消费者数量、最小最大数量、批量消费

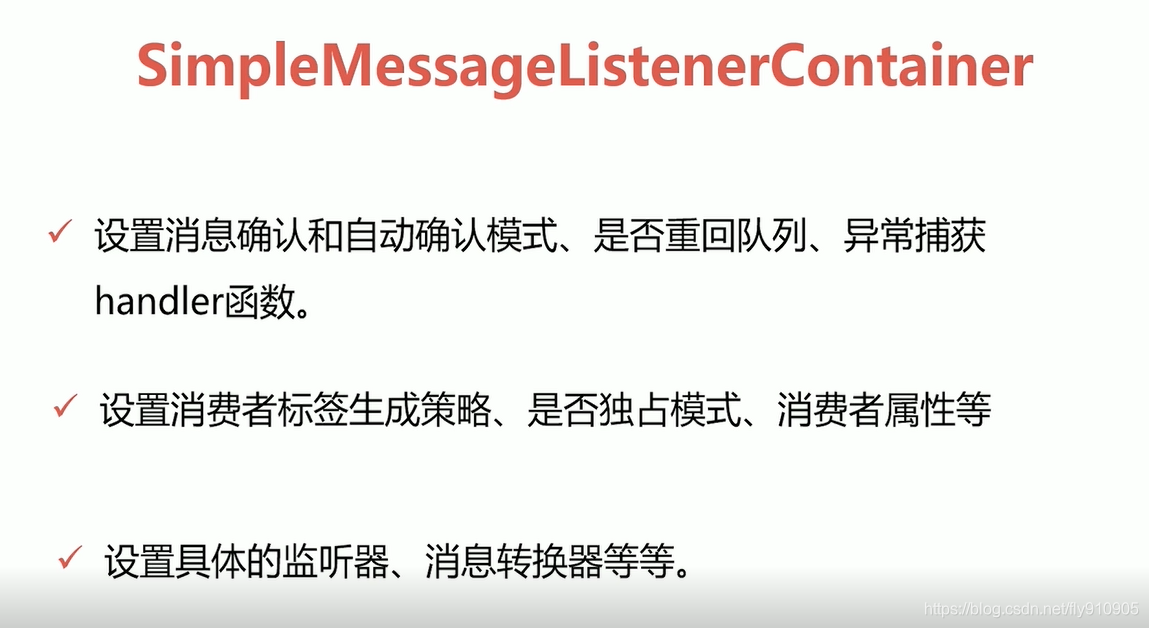

设置消息确认和自动确认模式、是否重回队列、异常捕捉handler函数

设置消费者标签生成策略、是否独占模式、消费者属性等

设置具体的监听器、消息转换器等等。


注意：

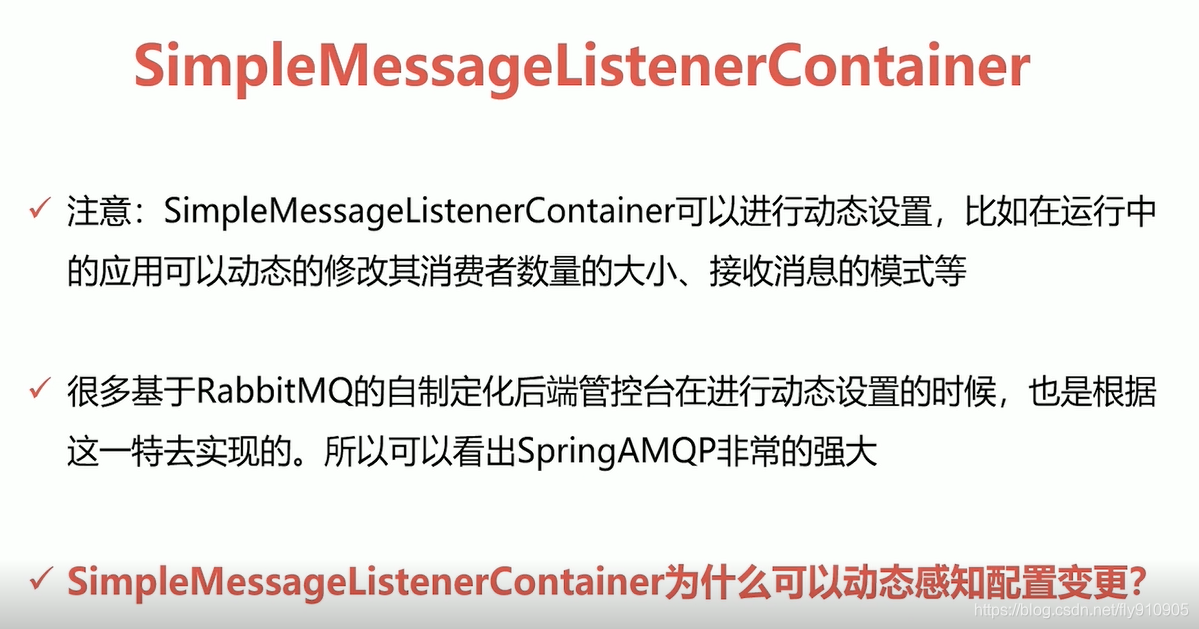

SimpleMessageListenerContainer可以进行动态设置，比如在运行中的应用可以动态的修改其消费者数量的大小、接收消息的模式等

很多机遇RabbitMQ的自制定话后端管控台在进行动态设置的时候，也是根据这一特性去实现的。所以可以看出SpringAMQP非常的强大



SimpleMessageListenerContainer原理：为什么可以动态感知配置变更？



SimpleMessageListenerContainer用一个List<String> 来存储所有queue，当要添加queue时，就往这个List添加，然后调用queuesChanged()方法，把所有的consumer都取消订阅，然后把他们都移除，然后有多少个consumer再重新new相同数量的consumer出来，然后每个consumer都把List中的每个都都订阅，到此就完成了。


5. MessageListenerAdapter

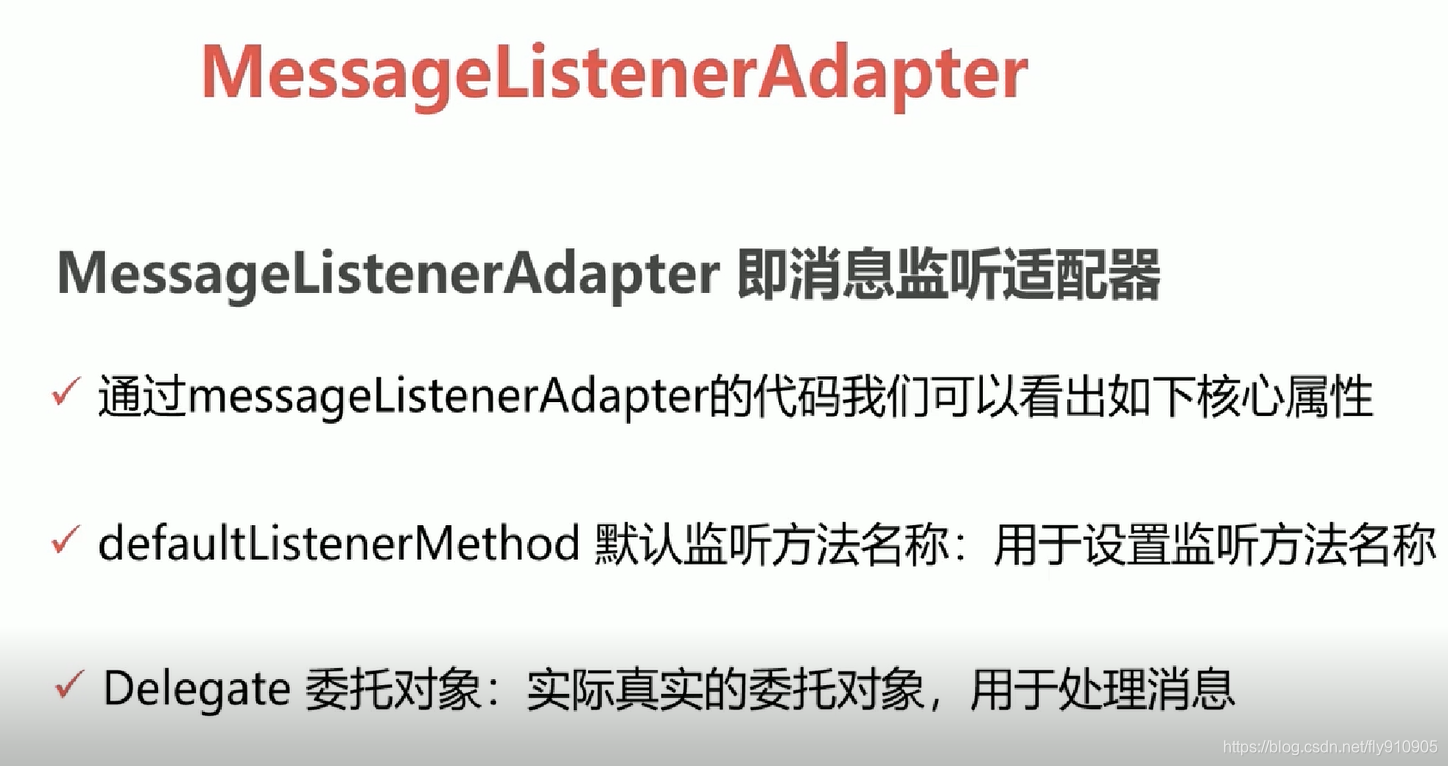

默认方法名就是叫handleMessage。当然也可以自己去指定设置。通过messageListenerAdapter的代码我们可以看出如下核心属性




defaultListenerMethod默认监听方法名称：用于设置监听方法名称

Delegate 委托对象：实际真实的委托对象，用于处理消息

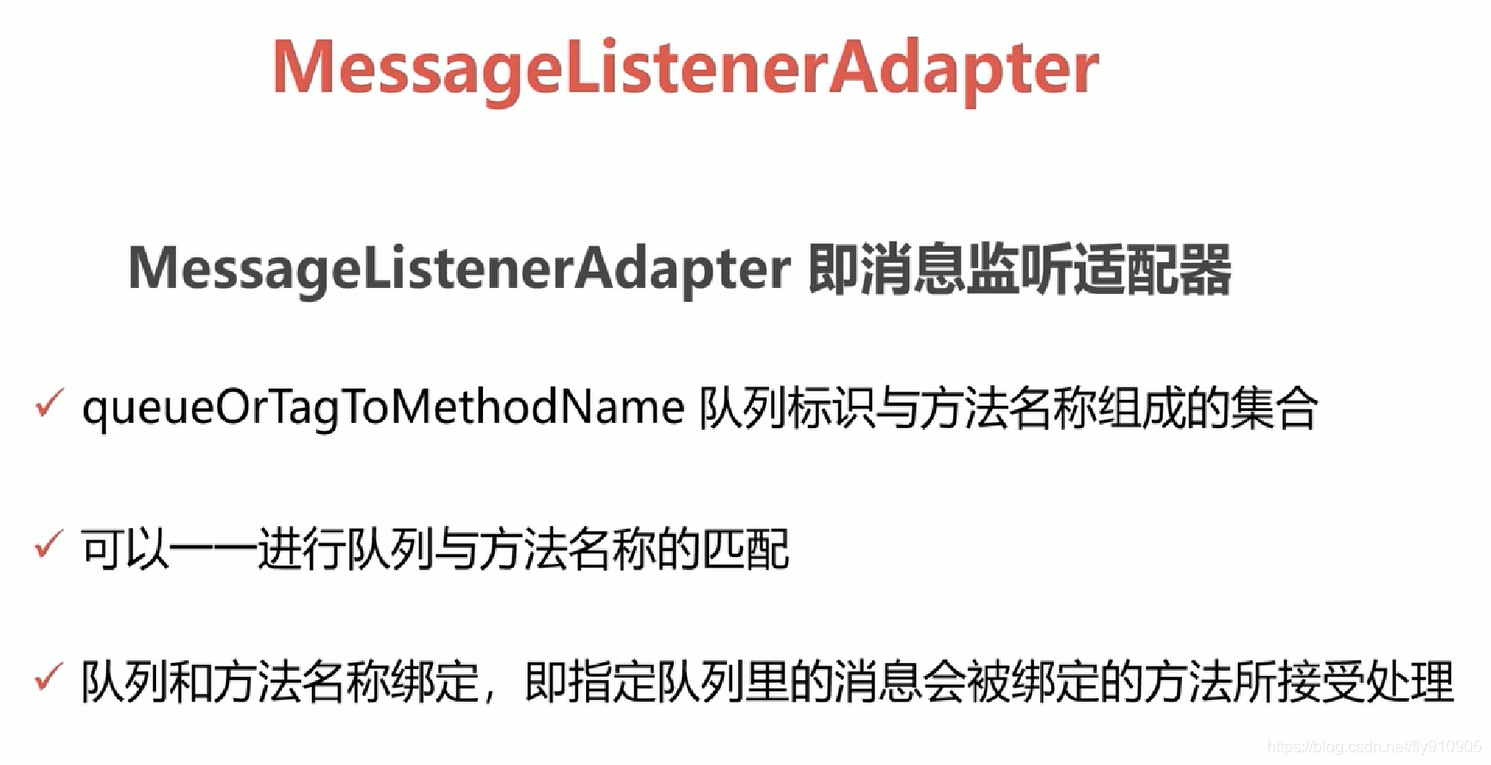

queueOrTagToMethodName 队列标识与方法名称组成集合

可以一一进行队列与方法名称的匹配

队列和方法名称绑定，即指定队列里的消息会被绑定的方法所接受处理

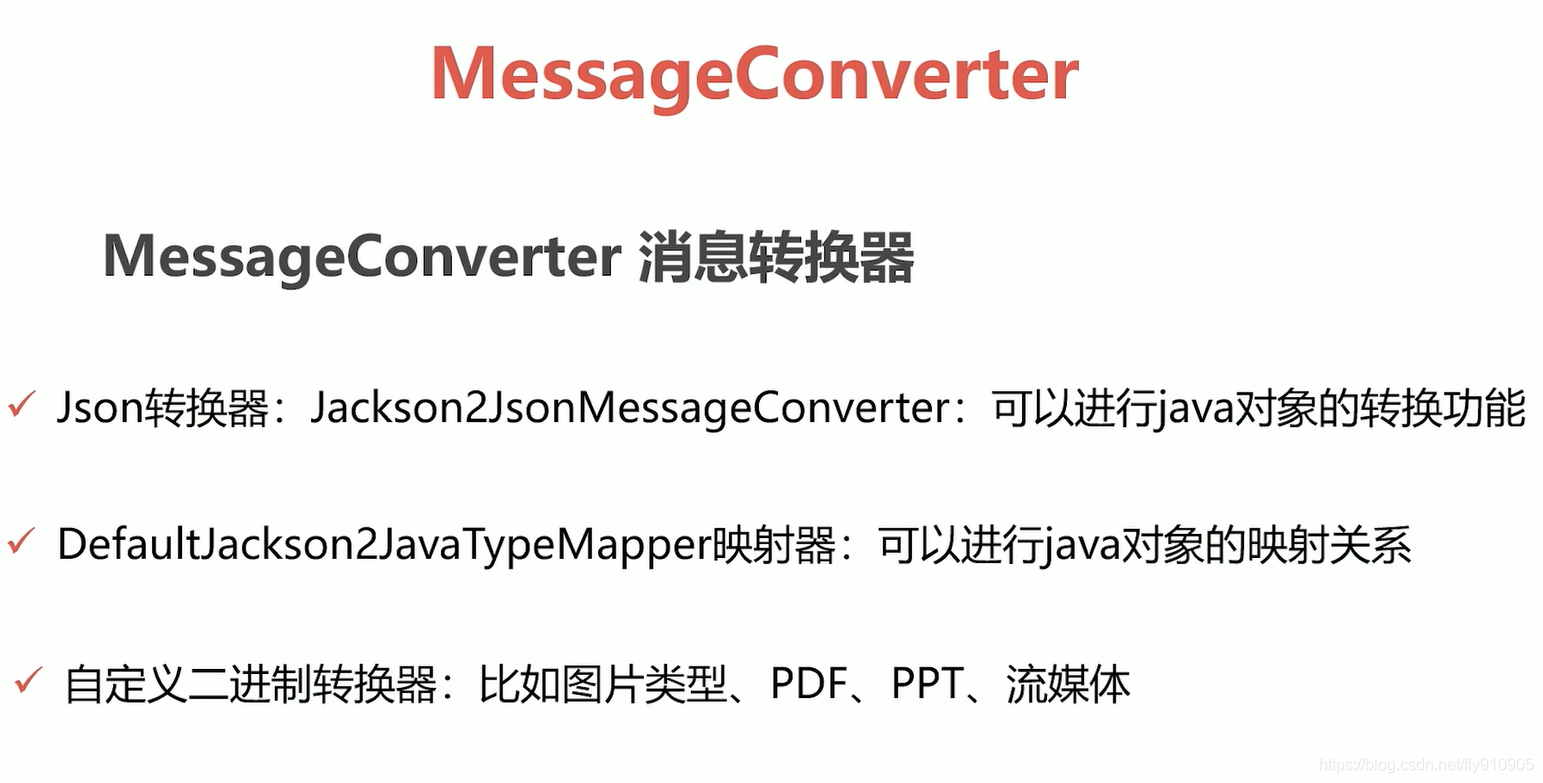

6. MessageConverter

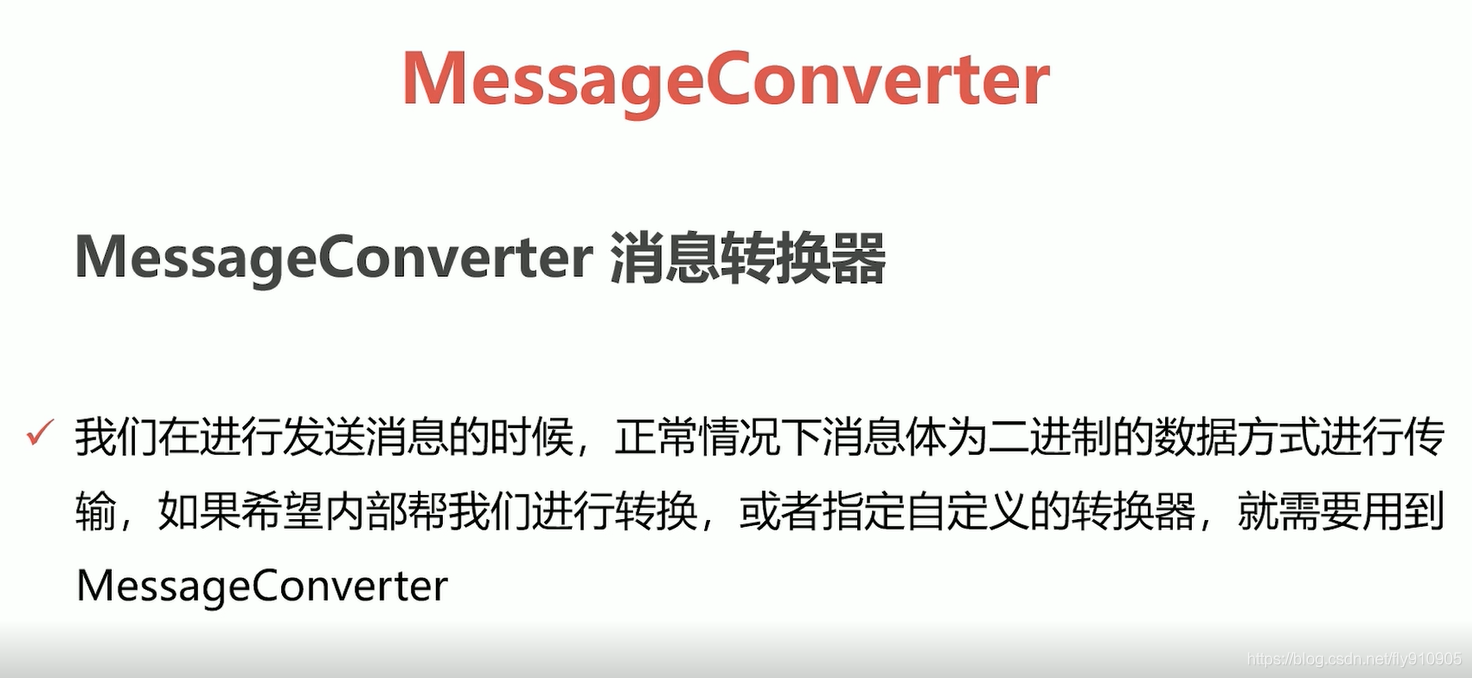

我们在进行发送消息的时候，正常情况下消息体为二进制的数据方式进行传输，如果希望内部帮我们进行转换，或者指定自定义的转换器，就需要用到MessageConverter

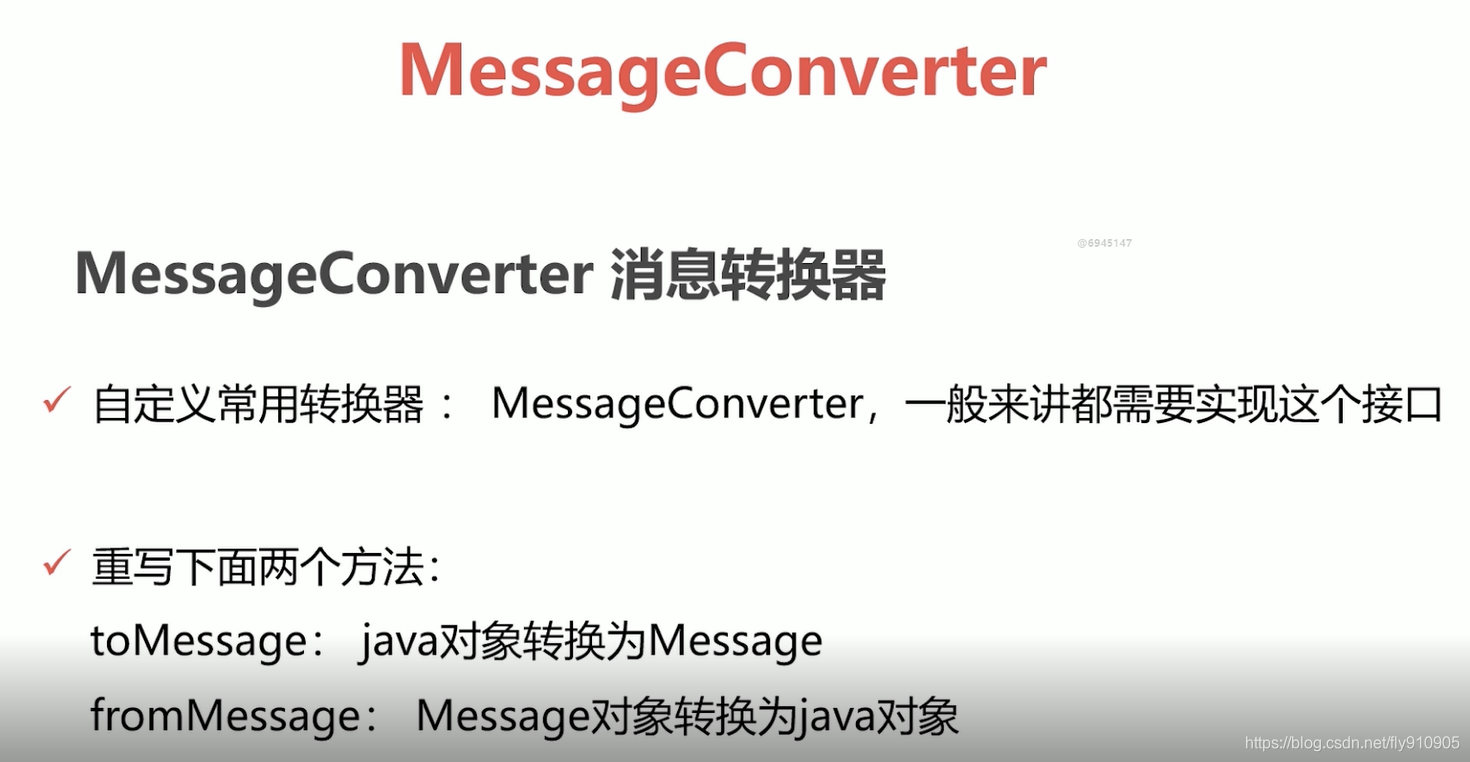

        自定义常用转换器：MessageConverter，一般来讲都需要实现这个接口

        重写下面两个方法：





toMessage:java对象转换为Message

fromMessage:Message对象转换为java对象


        Json转换器：Jackson2JsonMessageConverter:可以进行Java对象的转换功能

        DefaultJackson2JavaTypeMapper映射器：可以进行java对象的映射关系

        自定义二进制转换器：比如图片类型、PDF、PPT、流媒体



7 代码演示




    7.1 引入Pom文件


<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>

    <!--amqp-->
    <dependency>
        <groupId>com.rabbitmq</groupId>
        <artifactId>amqp-client</artifactId>
        <version>3.6.5</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-amqp</artifactId>
    </dependency>
</dependencies>

7.2 配置类

package com.bfxy.spring;

import java.util.UUID;

import org.springframework.amqp.core.AcknowledgeMode;
import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.Queue;
import org.springframework.amqp.core.TopicExchange;
import org.springframework.amqp.rabbit.connection.CachingConnectionFactory;
import org.springframework.amqp.rabbit.connection.ConnectionFactory;
import org.springframework.amqp.rabbit.core.RabbitAdmin;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.amqp.rabbit.listener.SimpleMessageListenerContainer;
import org.springframework.amqp.rabbit.listener.adapter.MessageListenerAdapter;
import org.springframework.amqp.support.ConsumerTagStrategy;
import org.springframework.amqp.support.converter.ContentTypeDelegatingMessageConverter;
import org.springframework.amqp.support.converter.Jackson2JsonMessageConverter;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;

import com.bfxy.spring.adapter.MessageDelegate;
import com.bfxy.spring.convert.ImageMessageConverter;
import com.bfxy.spring.convert.PDFMessageConverter;
import com.bfxy.spring.convert.TextMessageConverter;

@Configuration
@ComponentScan({"com.bfxy.spring.*"})
public class RabbitMQConfig {

    @Bean
    public ConnectionFactory connectionFactory(){
        CachingConnectionFactory connectionFactory = new CachingConnectionFactory();
        connectionFactory.setAddresses("192.168.11.76:5672");
        connectionFactory.setUsername("guest");
        connectionFactory.setPassword("guest");
        connectionFactory.setVirtualHost("/");
        return connectionFactory;
    }

    @Bean
    public RabbitAdmin rabbitAdmin(ConnectionFactory connectionFactory) {
        RabbitAdmin rabbitAdmin = new RabbitAdmin(connectionFactory);
        rabbitAdmin.setAutoStartup(true);
        return rabbitAdmin;
    }

    /**
     * 针对消费者配置
     * 1. 设置交换机类型
     * 2. 将队列绑定到交换机
        FanoutExchange: 将消息分发到所有的绑定队列，无routingkey的概念
        HeadersExchange ：通过添加属性key-value匹配
        DirectExchange:按照routingkey分发到指定队列
        TopicExchange:多关键字匹配
     */
    @Bean
    public TopicExchange exchange001() {
        return new TopicExchange("topic001", true, false);
    }

    @Bean
    public Queue queue001() {
        return new Queue("queue001", true); //队列持久
    }

    @Bean
    public Binding binding001() {
        return BindingBuilder.bind(queue001()).to(exchange001()).with("spring.*");
    }

    @Bean
    public TopicExchange exchange002() {
        return new TopicExchange("topic002", true, false);
    }

    @Bean
    public Queue queue002() {
        return new Queue("queue002", true); //队列持久
    }

    @Bean
    public Binding binding002() {
        return BindingBuilder.bind(queue002()).to(exchange002()).with("rabbit.*");
    }

    @Bean
    public Queue queue003() {
        return new Queue("queue003", true); //队列持久
    }

    @Bean
    public Binding binding003() {
        return BindingBuilder.bind(queue003()).to(exchange001()).with("mq.*");
    }

    @Bean
    public Queue queue_image() {
        return new Queue("image_queue", true); //队列持久
    }

    @Bean
    public Queue queue_pdf() {
        return new Queue("pdf_queue", true); //队列持久
    }


    @Bean
    public RabbitTemplate rabbitTemplate(ConnectionFactory connectionFactory) {
        RabbitTemplate rabbitTemplate = new RabbitTemplate(connectionFactory);
        return rabbitTemplate;
    }

    @Bean
    public SimpleMessageListenerContainer messageContainer(ConnectionFactory connectionFactory) {

        SimpleMessageListenerContainer container = new SimpleMessageListenerContainer(connectionFactory);
        container.setQueues(queue001(), queue002(), queue003(), queue_image(), queue_pdf());
        container.setConcurrentConsumers(1);
        container.setMaxConcurrentConsumers(5);
        container.setDefaultRequeueRejected(false);
        container.setAcknowledgeMode(AcknowledgeMode.AUTO);
        container.setExposeListenerChannel(true);
        container.setConsumerTagStrategy(new ConsumerTagStrategy() {
            @Override
            public String createConsumerTag(String queue) {
                return queue + "_" + UUID.randomUUID().toString();
            }
        });
        /**
        container.setMessageListener(new ChannelAwareMessageListener() {
            @Override
            public void onMessage(Message message, Channel channel) throws Exception {
                String msg = new String(message.getBody());
                System.err.println("----------消费者: " + msg);
            }
        });
        */

        /**
         * 1 适配器方式. 默认是有自己的方法名字的：handleMessage
            // 可以自己指定一个方法的名字: consumeMessage
            // 也可以添加一个转换器: 从字节数组转换为String
        MessageListenerAdapter adapter = new MessageListenerAdapter(new MessageDelegate());
        adapter.setDefaultListenerMethod("consumeMessage");
        adapter.setMessageConverter(new TextMessageConverter());
        container.setMessageListener(adapter);
        */

        /**
         * 2 适配器方式: 我们的队列名称 和 方法名称 也可以进行一一的匹配
         *
        MessageListenerAdapter adapter = new MessageListenerAdapter(new MessageDelegate());
        adapter.setMessageConverter(new TextMessageConverter());
        Map<String, String> queueOrTagToMethodName = new HashMap<>();
        queueOrTagToMethodName.put("queue001", "method1");
        queueOrTagToMethodName.put("queue002", "method2");
        adapter.setQueueOrTagToMethodName(queueOrTagToMethodName);
        container.setMessageListener(adapter);
        */

        // 1.1 支持json格式的转换器
        /**
        MessageListenerAdapter adapter = new MessageListenerAdapter(new MessageDelegate());
        adapter.setDefaultListenerMethod("consumeMessage");

        Jackson2JsonMessageConverter jackson2JsonMessageConverter = new Jackson2JsonMessageConverter();
        adapter.setMessageConverter(jackson2JsonMessageConverter);

        container.setMessageListener(adapter);
        */


        // 1.2 DefaultJackson2JavaTypeMapper & Jackson2JsonMessageConverter 支持java对象转换
        /**
        MessageListenerAdapter adapter = new MessageListenerAdapter(new MessageDelegate());
        adapter.setDefaultListenerMethod("consumeMessage");

        Jackson2JsonMessageConverter jackson2JsonMessageConverter = new Jackson2JsonMessageConverter();

        DefaultJackson2JavaTypeMapper javaTypeMapper = new DefaultJackson2JavaTypeMapper();
        jackson2JsonMessageConverter.setJavaTypeMapper(javaTypeMapper);

        adapter.setMessageConverter(jackson2JsonMessageConverter);
        container.setMessageListener(adapter);
        */


        //1.3 DefaultJackson2JavaTypeMapper & Jackson2JsonMessageConverter 支持java对象多映射转换
        /**
        MessageListenerAdapter adapter = new MessageListenerAdapter(new MessageDelegate());
        adapter.setDefaultListenerMethod("consumeMessage");
        Jackson2JsonMessageConverter jackson2JsonMessageConverter = new Jackson2JsonMessageConverter();
        DefaultJackson2JavaTypeMapper javaTypeMapper = new DefaultJackson2JavaTypeMapper();

        Map<String, Class<?>> idClassMapping = new HashMap<String, Class<?>>();
        idClassMapping.put("order", com.bfxy.spring.entity.Order.class);
        idClassMapping.put("packaged", com.bfxy.spring.entity.Packaged.class);

        javaTypeMapper.setIdClassMapping(idClassMapping);

        jackson2JsonMessageConverter.setJavaTypeMapper(javaTypeMapper);
        adapter.setMessageConverter(jackson2JsonMessageConverter);
        container.setMessageListener(adapter);
        */

        //1.4 ext convert
        MessageListenerAdapter adapter = new MessageListenerAdapter(new MessageDelegate());
        adapter.setDefaultListenerMethod("consumeMessage");

        //全局的转换器:
        ContentTypeDelegatingMessageConverter convert = new ContentTypeDelegatingMessageConverter();

        TextMessageConverter textConvert = new TextMessageConverter();
        convert.addDelegate("text", textConvert);
        convert.addDelegate("html/text", textConvert);
        convert.addDelegate("xml/text", textConvert);
        convert.addDelegate("text/plain", textConvert);

        Jackson2JsonMessageConverter jsonConvert = new Jackson2JsonMessageConverter();
        convert.addDelegate("json", jsonConvert);
        convert.addDelegate("application/json", jsonConvert);

        ImageMessageConverter imageConverter = new ImageMessageConverter();
        convert.addDelegate("image/png", imageConverter);
        convert.addDelegate("image", imageConverter);

        PDFMessageConverter pdfConverter = new PDFMessageConverter();
        convert.addDelegate("application/pdf", pdfConverter);


        adapter.setMessageConverter(convert);
        container.setMessageListener(adapter);

        return container;

    }
}


7.3 消息转换器

图片转换器

import java.io.ByteArrayInputStream;
import java.io.File;
import java.io.IOException;
import java.nio.file.Files;
import java.util.UUID;

import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageProperties;
import org.springframework.amqp.support.converter.MessageConversionException;
import org.springframework.amqp.support.converter.MessageConverter;

public class ImageMessageConverter implements MessageConverter {

    @Override
    public Message toMessage(Object object, MessageProperties messageProperties) throws MessageConversionException {
        throw new MessageConversionException(" convert error ! ");
    }

    @Override
    public Object fromMessage(Message message) throws MessageConversionException {
        System.err.println("-----------Image MessageConverter----------");

        Object _extName = message.getMessageProperties().getHeaders().get("extName");
        String extName = _extName == null ? "png" : _extName.toString();

        byte[] body = message.getBody();
        String fileName = UUID.randomUUID().toString();
        String path = "d:/010_test/" + fileName + "." + extName;
        File f = new File(path);
        try {
            Files.copy(new ByteArrayInputStream(body), f.toPath());
        } catch (IOException e) {
            e.printStackTrace();
        }
        return f;
    }
}


PDF转换器

import java.io.ByteArrayInputStream;
import java.io.File;
import java.io.IOException;
import java.nio.file.Files;
import java.util.UUID;

import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageProperties;
import org.springframework.amqp.support.converter.MessageConversionException;
import org.springframework.amqp.support.converter.MessageConverter;

public class PDFMessageConverter implements MessageConverter {

    @Override
    public Message toMessage(Object object, MessageProperties messageProperties) throws MessageConversionException {
        throw new MessageConversionException(" convert error ! ");
    }

    @Override
    public Object fromMessage(Message message) throws MessageConversionException {
        System.err.println("-----------PDF MessageConverter----------");

        byte[] body = message.getBody();
        String fileName = UUID.randomUUID().toString();
        String path = "d:/010_test/" + fileName + ".pdf";
        File f = new File(path);
        try {
            Files.copy(new ByteArrayInputStream(body), f.toPath());
        } catch (IOException e) {
            e.printStackTrace();
        }
        return f;
    }
}


文本转换器

import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageProperties;
import org.springframework.amqp.support.converter.MessageConversionException;
import org.springframework.amqp.support.converter.MessageConverter;

public class TextMessageConverter implements MessageConverter {

    @Override
    public Message toMessage(Object object, MessageProperties messageProperties) throws MessageConversionException {
        return new Message(object.toString().getBytes(), messageProperties);
    }

    @Override
    public Object fromMessage(Message message) throws MessageConversionException {
        String contentType = message.getMessageProperties().getContentType();
        if(null != contentType && contentType.contains("text")) {
            return new String(message.getBody());
        }
        return message.getBody();
    }
}


7.4 实体

public class Order {

    private String id;

    private String name;

    private String content;

    public Order() {
    }

    public Order(String id, String name, String content) {
        this.id = id;
        this.name = name;
        this.content = content;
    }

    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getContent() {
        return content;
    }

    public void setContent(String content) {
        this.content = content;
    }

}


public class Packaged {

    private String id;

    private String name;

    private String description;

    public Packaged() {
    }

    public Packaged(String id, String name, String description) {
        this.id = id;
        this.name = name;
        this.description = description;
    }

    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getDescription() {
        return description;
    }

    public void setDescription(String description) {
        this.description = description;
    }
}


7.5 测试类

import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.HashMap;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.amqp.AmqpException;
import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.DirectExchange;
import org.springframework.amqp.core.FanoutExchange;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessagePostProcessor;
import org.springframework.amqp.core.MessageProperties;
import org.springframework.amqp.core.Queue;
import org.springframework.amqp.core.TopicExchange;
import org.springframework.amqp.rabbit.core.RabbitAdmin;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

import com.bfxy.spring.entity.Order;
import com.bfxy.spring.entity.Packaged;
import com.fasterxml.jackson.databind.ObjectMapper;

@RunWith(SpringRunner.class)
@SpringBootTest
public class ApplicationTests {

    @Test
    public void contextLoads() {
    }

    @Autowired
    private RabbitAdmin rabbitAdmin;

    @Test
    public void testAdmin() throws Exception {
        rabbitAdmin.declareExchange(new DirectExchange("test.direct", false, false));

        rabbitAdmin.declareExchange(new TopicExchange("test.topic", false, false));

        rabbitAdmin.declareExchange(new FanoutExchange("test.fanout", false, false));

        rabbitAdmin.declareQueue(new Queue("test.direct.queue", false));

        rabbitAdmin.declareQueue(new Queue("test.topic.queue", false));

        rabbitAdmin.declareQueue(new Queue("test.fanout.queue", false));

        rabbitAdmin.declareBinding(new Binding("test.direct.queue",
                Binding.DestinationType.QUEUE,
                "test.direct", "direct", new HashMap<>()));

        rabbitAdmin.declareBinding(
                BindingBuilder
                .bind(new Queue("test.topic.queue", false))     //直接创建队列
                .to(new TopicExchange("test.topic", false, false))  //直接创建交换机 建立关联关系
                .with("user.#"));   //指定路由Key


        rabbitAdmin.declareBinding(
                BindingBuilder
                .bind(new Queue("test.fanout.queue", false))
                .to(new FanoutExchange("test.fanout", false, false)));

        //清空队列数据
        rabbitAdmin.purgeQueue("test.topic.queue", false);
    }

    @Autowired
    private RabbitTemplate rabbitTemplate;

    @Test
    public void testSendMessage() throws Exception {
        //1 创建消息
        MessageProperties messageProperties = new MessageProperties();
        messageProperties.getHeaders().put("desc", "信息描述..");
        messageProperties.getHeaders().put("type", "自定义消息类型..");
        Message message = new Message("Hello RabbitMQ".getBytes(), messageProperties);

        rabbitTemplate.convertAndSend("topic001", "spring.amqp", message, new MessagePostProcessor() {
            @Override
            public Message postProcessMessage(Message message) throws AmqpException {
                System.err.println("------添加额外的设置---------");
                message.getMessageProperties().getHeaders().put("desc", "额外修改的信息描述");
                message.getMessageProperties().getHeaders().put("attr", "额外新加的属性");
                return message;
            }
        });
    }

    @Test
    public void testSendMessage2() throws Exception {
        //1 创建消息
        MessageProperties messageProperties = new MessageProperties();
        messageProperties.setContentType("text/plain");
        Message message = new Message("mq 消息1234".getBytes(), messageProperties);

        rabbitTemplate.send("topic001", "spring.abc", message);

        rabbitTemplate.convertAndSend("topic001", "spring.amqp", "hello object message send!");
        rabbitTemplate.convertAndSend("topic002", "rabbit.abc", "hello object message send!");
    }

    @Test
    public void testSendMessage4Text() throws Exception {
        //1 创建消息
        MessageProperties messageProperties = new MessageProperties();
        messageProperties.setContentType("text/plain");
        Message message = new Message("mq 消息1234".getBytes(), messageProperties);

        rabbitTemplate.send("topic001", "spring.abc", message);
        rabbitTemplate.send("topic002", "rabbit.abc", message);
    }

    @Test
    public void testSendJsonMessage() throws Exception {

        Order order = new Order();
        order.setId("001");
        order.setName("消息订单");
        order.setContent("描述信息");
        ObjectMapper mapper = new ObjectMapper();
        String json = mapper.writeValueAsString(order);
        System.err.println("order 4 json: " + json);

        MessageProperties messageProperties = new MessageProperties();
        //这里注意一定要修改contentType为 application/json
        messageProperties.setContentType("application/json");
        Message message = new Message(json.getBytes(), messageProperties);

        rabbitTemplate.send("topic001", "spring.order", message);
    }

    @Test
    public void testSendJavaMessage() throws Exception {

        Order order = new Order();
        order.setId("001");
        order.setName("订单消息");
        order.setContent("订单描述信息");
        ObjectMapper mapper = new ObjectMapper();
        String json = mapper.writeValueAsString(order);
        System.err.println("order 4 json: " + json);

        MessageProperties messageProperties = new MessageProperties();
        //这里注意一定要修改contentType为 application/json
        messageProperties.setContentType("application/json");
        messageProperties.getHeaders().put("__TypeId__", "com.bfxy.spring.entity.Order");
        Message message = new Message(json.getBytes(), messageProperties);

        rabbitTemplate.send("topic001", "spring.order", message);
    }

    @Test
    public void testSendMappingMessage() throws Exception {

        ObjectMapper mapper = new ObjectMapper();

        Order order = new Order();
        order.setId("001");
        order.setName("订单消息");
        order.setContent("订单描述信息");

        String json1 = mapper.writeValueAsString(order);
        System.err.println("order 4 json: " + json1);

        MessageProperties messageProperties1 = new MessageProperties();
        //这里注意一定要修改contentType为 application/json
        messageProperties1.setContentType("application/json");
        messageProperties1.getHeaders().put("__TypeId__", "order");
        Message message1 = new Message(json1.getBytes(), messageProperties1);
        rabbitTemplate.send("topic001", "spring.order", message1);

        Packaged pack = new Packaged();
        pack.setId("002");
        pack.setName("包裹消息");
        pack.setDescription("包裹描述信息");

        String json2 = mapper.writeValueAsString(pack);
        System.err.println("pack 4 json: " + json2);

        MessageProperties messageProperties2 = new MessageProperties();
        //这里注意一定要修改contentType为 application/json
        messageProperties2.setContentType("application/json");
        messageProperties2.getHeaders().put("__TypeId__", "packaged");
        Message message2 = new Message(json2.getBytes(), messageProperties2);
        rabbitTemplate.send("topic001", "spring.pack", message2);
    }

    @Test
    public void testSendExtConverterMessage() throws Exception {
//          byte[] body = Files.readAllBytes(Paths.get("d:/002_books", "picture.png"));
//          MessageProperties messageProperties = new MessageProperties();
//          messageProperties.setContentType("image/png");
//          messageProperties.getHeaders().put("extName", "png");
//          Message message = new Message(body, messageProperties);
//          rabbitTemplate.send("", "image_queue", message);

            byte[] body = Files.readAllBytes(Paths.get("d:/002_books", "mysql.pdf"));
            MessageProperties messageProperties = new MessageProperties();
            messageProperties.setContentType("application/pdf");
            Message message = new Message(body, messageProperties);
            rabbitTemplate.send("", "pdf_queue", message);
    }
}












                                                如果您觉得本教程对您有用，欢迎赞赏支持智客工坊的发展！

















                                            版权声明：
                                            本文为智客工坊「琦彦 」的原创文章，遵循CC 4.0 BY-SA版权协议，转载请附上原文出处链接及本声明。
